Analog Penning Gauges

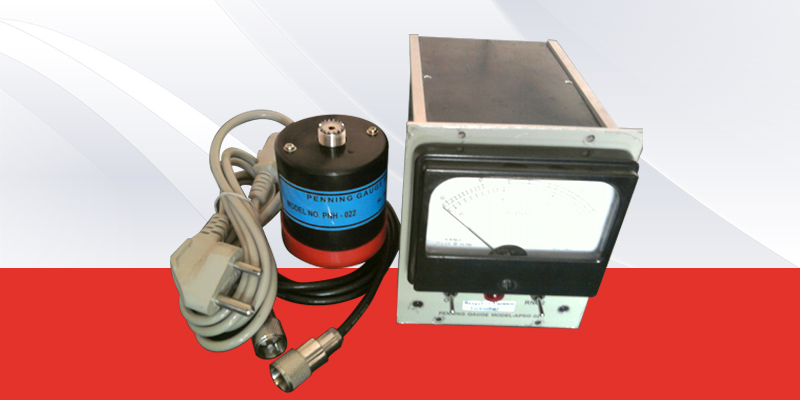

We specialized in offering a premium quality range of Analog Penning Gauges. The offered gauges are used in various industries and demanded their hassle free performance. These gauges are designed with utmost precision using best grade material and advanced techniques. In addition, our entire range of gauges is offered at the affordable rates to our clients.
Product Details:
| Number of gauge heads | 2 |
| Power input | V AC 10%, 50 Hz |
| Operating temperature | 15 to 45 deg Celcius |
| Analog output | 0-200 mv |
Features:
- Rugged design
- Easy installation
- Corrosion-resistance
Other Details:
- Ionization in a medium as high voltage breakdown depends upon the gas-particle density
- If a continuously pumped down medium is subjected to constant high tension voltage, the ionization current developed due to the breakdown will be directly proportional to the instant pressure magnitude
- BVT cold cathode penning gauge is built on this detection method to read vacuum from 10-2 m.bar to 10-6 m.bar
- Collection efficiency is enhanced by utilizing cross-coupled static magnetic and electric fields in the gauge head
- The gauge is self-contained stabilized high voltage DC power supply of about 2 KV with a direct read out from front panel indicating ionization current in terms of vacuum
- All the high voltage points are properly shielded to avoid any accidental contact by user
- The gauge head consists of a high voltage feedthrough, magnetic and electrical field structure and is off all metal construction
Salient Features:
- Indigenous design & hardware
- No user calibration
- Modular hardware design
- Engineered for repeatability & reliability
- Compact solid-state electronics
- Wide angle meter direct read out in m.bar
- Minimum controls
- Unaffected by temperature fluctuations
- Compatible output for process set point controller
Specifications:
| Analog Penning gauge | Analog Pirani Gauge |
| Unit of measurement | M.bar |
| Pressure range | 0.5 m.bar to 1 x 10(-3) Factory set Any position, preferable vertical 2 mtr long cable as standard, Extra long cable on request 92 mm x 92 mm KF-10 |
| Display | Continuous single scale meter read out with selector switch for gauge head selection |
| Power chord | 2 mtr long cable with 3 pins 5 amp plug as standard Extra long cable on request |
| Calibration | Factory set |
| Gauge head mounting | Any position, preferable vertical |
| Gauge head cable | 2 mtr long cable as standard Extra long cable on request |
| Cut out size | 92 mm x 92 mm |
| End connection of gauge head | KF-10 |
