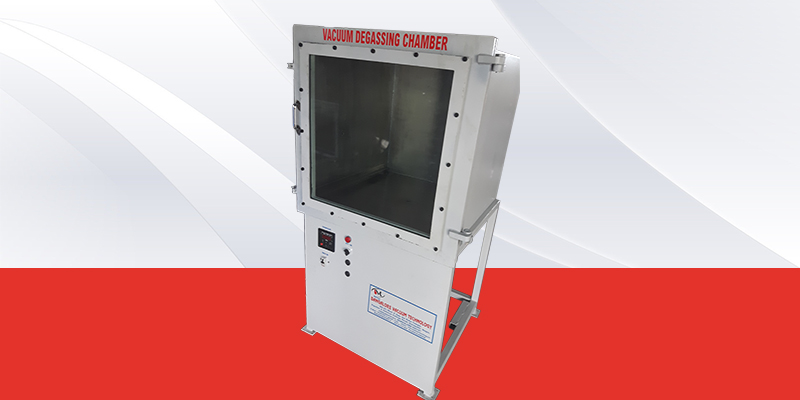

Vacuum De Gassing Chamber
Vacuum De Gassing Chamber serves a range of industries, all faced with the same challenges of environmental contamination and gas entrapment in curing compounds. Vacuum De Gassing Chamber serves to improve the process and end product working with epoxies, urethanes, resins, silicone rubber, adhesive mixes, castings, plaster, compounds used in jewelry, sculptures, medical and electrical components. Raw compounds or the components of a mixture can be mixed before or during degassing by employing Vacuum D Gassing Chamber, scaled from benchtop small batch systems to drum chambers sized to accommodate 55-gallon drums. Mixer motors of various torque and speed and accompanying thermal platen systems help meet the challenges of working with the most demanding materials.
Product Details:
| Voltage | 380 V |
| Weight | 50.3 lbs (23 kg) |
| Seal Bar Length | 29.2 cm |
| Seal Bar Type | Single |
Specifications for vacuum De-Gassing chamber with Front open lid /Top open lid: (Can be customized)
- Chamber Material : SS304 / 304L/ AL 6061 /AL 6062
- Chamber Finish : Inside – buffed matt finish, outside – powder coating. (as per customer requirement)
- Type : Table To/individual
- Design: Rectangular/oval/circle/square
- Size 500 (w) x 500 (h) x 500 (D) mm ( customized starts from 100 mm size)
- Transparent view port on the door: size - 10”/8”/6” located in door top/Front door
- Door : Front opening/Top opening.
- Lid/Door Configuration: Hinge type
- Light Port at top
- Seal: Buna O Ring
- Vacuum Port: NW KF – 25/50
- Vent Port: NW KF - 10
- Gauge Port: NW KF - 10
- Vacuum Rating: 5 x 10-3 Torr
- Gas purging port : KF -10 / ¼ ” BSP)
- Suitable BVT Make Vacuum pump and Vacuum gauge.
