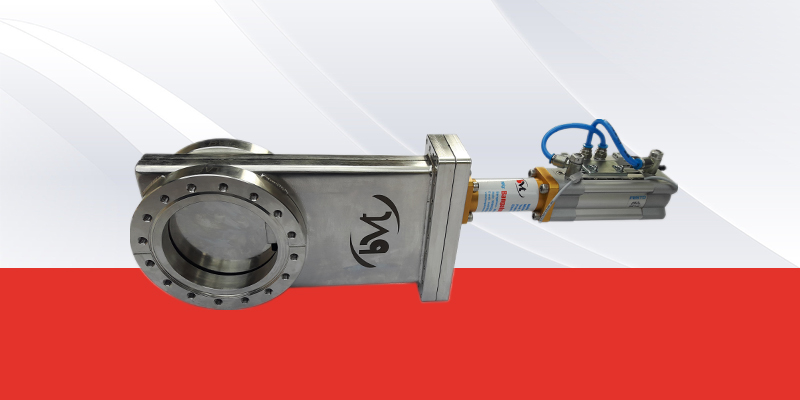

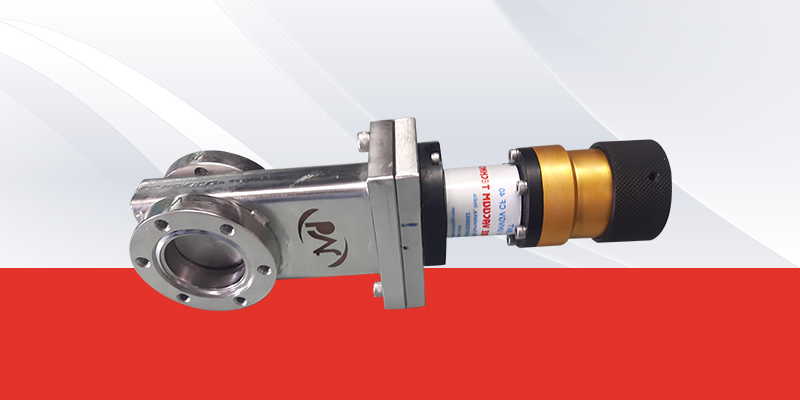

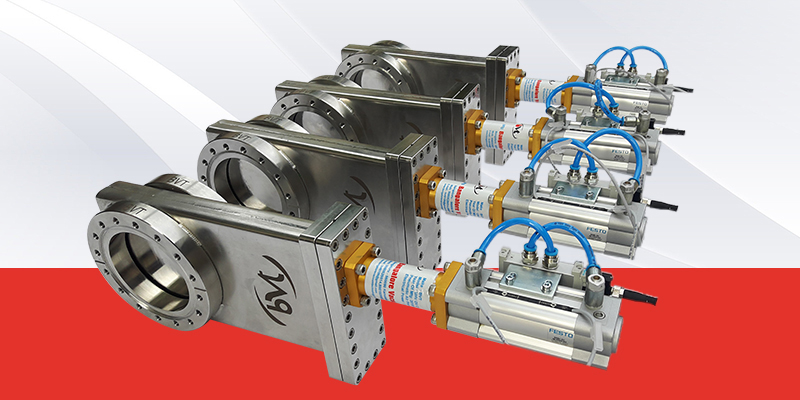

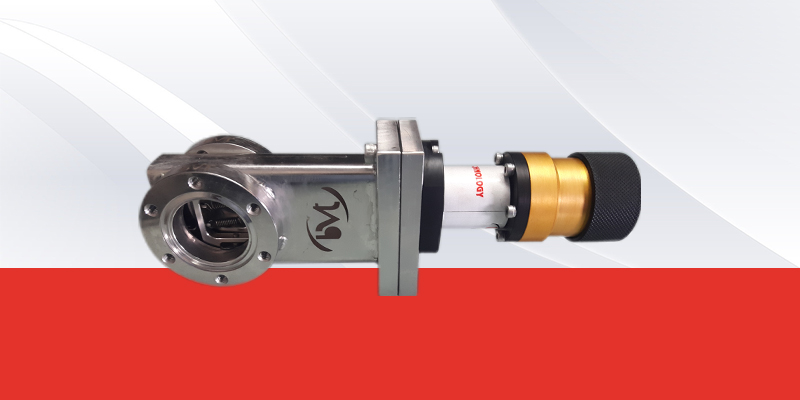

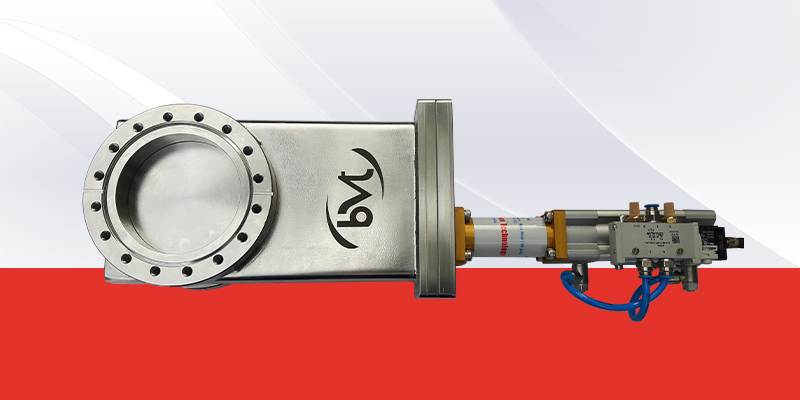

Ultra High Vacuum Gate Valve
Bangalore Vacuum Technology manufactures pneumatically operated Vacuum Gate Valves of 1” to 20” in Stainless steel. These Gate valves are fitted with viton “O” rings as standard and optionally CF-Flanges of copper gasket sealing are offered. These valves are used as “in-line” chamber isolation valve.
Ultra High Vacuum Gate Valve
Product Details:
| Minimum Order Quantity | 2 Piece |
| Brand | BVT |
| Material | Stainless Steel |
| Usage/Application | Vacuum |
| End Connection Type | DN 40 – 500 |
| Media | Vacuum |
| Temperature Of Media | Medium Temperature |
Description :
Flange : NW CF/ NW KF
Actuator : Electro-pneumatic, double acting – with solenoid valve – with position indicator
valve size : 1 inch - 20 inch
Feedthrough : Bellows
Leak rate : Valve body ≤ 1 • 10-10 mbar ls-1 Valve seat ≤ 1 • 10-9 mbar ls-1 Pressure range 1 • 10-10 mbar to 1.6 bar (abs)
Cycles until first service : 60000 (unheated and under clean conditions)
Material (main components) : Valve Body - AL / AISI 304L Mechanism AL / AISI 304L Seal – Bonnet metal Gate FKM (Viton), O-ring – Actuator FKM (Viton)
Mounting position : any
Actuation time : closing - 1.2 s opening - 1.2 s Weight Approx < 15 Kg
Additional Information:
Item Code: BVT_UHV_GV_100
Production Capacity: 1000 -10000
Delivery Time: 4 weeks
Packaging Details: Safe packing
